A speculative prologue: why the future asks for photonic precision
In the coming decade the micro-electronics craftsman will be judged as much by photonic control as by lithographic finesse; thus we consider how a high-power fiber architecture might reframe micro-drilling practice. This future-speculative piece examines the promise of a 300W-class fiber laser and related ultrafast tools — including femtosecond lasers — to unlock new coordinate strategies for vias, through-holes, and precision features in advanced substrates. The inquiry is guided by practical realities from leading wafer fabs in Taiwan and Singapore, where throughput and defect budgets determine adoption.
Core technical advantages that matter
A 300W fiber platform, when married to ultrafast pulse shaping, offers three tangible benefits: higher average power for increased throughput, controllable pulse duration to limit the heat-affected zone, and stable beam delivery that eases alignment on complex stacks. Pulse duration and peak power modulate ablation behaviour; short pulses reduce collateral melting and thus preserve neighbouring microstructures. These are not mere curiosities but decisive levers when drilling sub-100 µm apertures in multi-layer laminates or metallic interposers.
New micro-drilling coordinates: methodology and consequence
Reimagining coordinates means moving beyond simple X–Y hole centers to a coordinate system that encodes depth-phase, overlap strategy, and temporal spacing. Repetition rate and pulse energy become tied to a spatial map: one adjusts overlap to manage cumulative heating, and varies pulse energy for each depth tier to preserve wall integrity. The result is an axis set that reads like (X, Y, Z, E, τ) — position, pulse energy, and pulse duration — a schema useful when automating process recipes for mixed-material stacks.
Integration into production: pragmatics and a real-world anchor

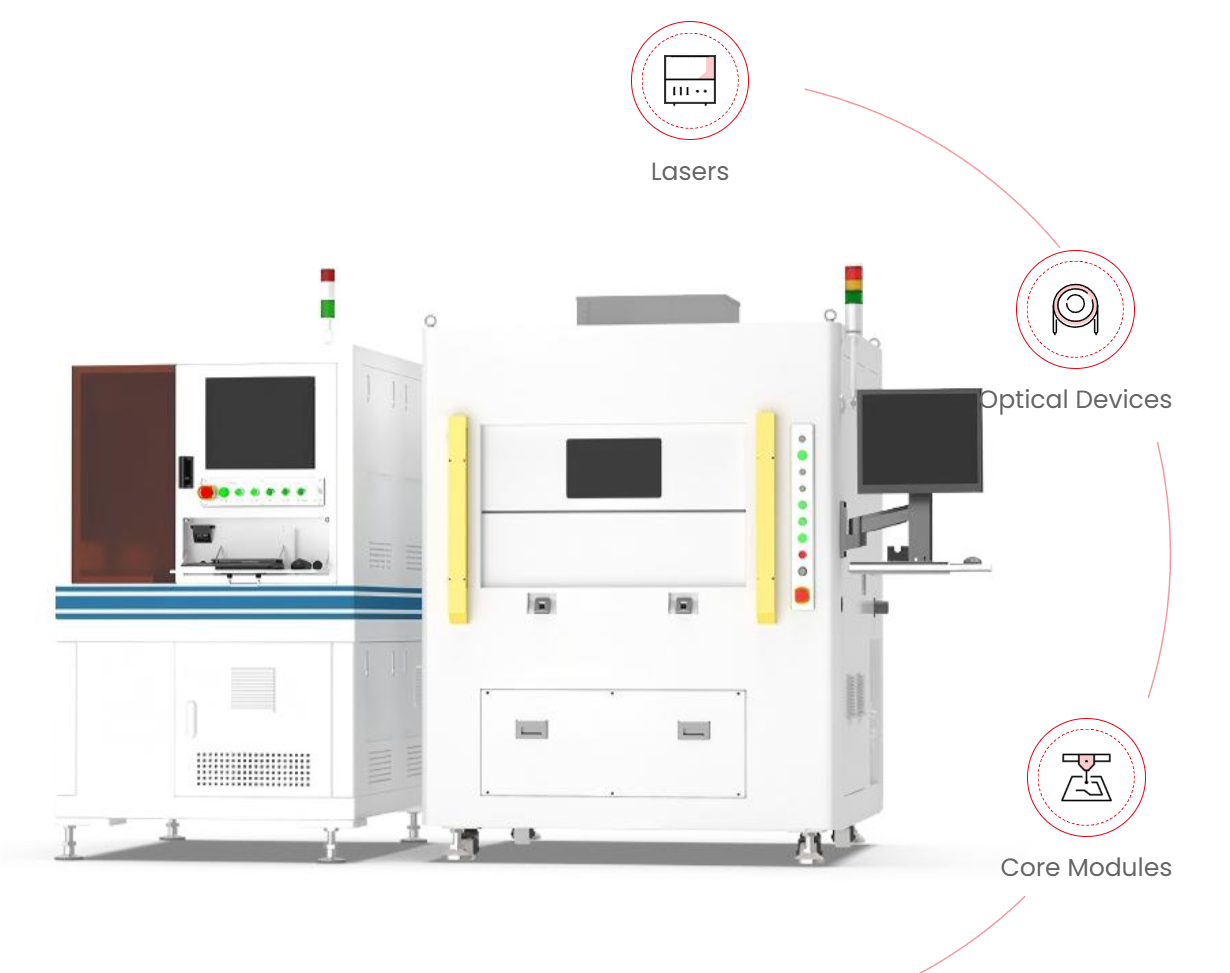

Adoption is not theoretical; it demands considerations of cycle time, maintenance, and compatibility with existing motion systems. Integrators in semiconductor clusters have learned that tool uptime and repeatability trump experimental headroom. Thus, a practical option is to pair a high-power fiber source with a dedicated femtosecond laser machine that offers closed-loop focus control and environmental isolation. Equipment that supports real-time monitoring of beam quality (M2) and permit straightforward exchange of work-holding fixtures will see the swiftest factory acclimation.
Design trade-offs and common errors to avoid
Engineers often mistake raw power for clean results. Excess average power without matched pulse control yields thermal damage and micro-cracking. Another frequent misstep is underestimating surface finish needs for plated through-holes — the laser may produce an aperture but leave recast that hinders subsequent metallization. Lastly, insufficient attention to mechanical fixturing fosters mis-registration under high-throughput scans — and that is a costly oversight. — Always prototype with your actual assembly fixtures and filling processes to reveal such failure modes early.
Comparative perspective: ultrafast fiber vs. alternatives
Compare thus: nanosecond lasers offer lower capital intensity and simpler optics but entail larger heat-affected zones and post-process cleaning. Ultrafast fiber systems, conversely, yield cleaner ablation and finer edges albeit at higher initial cost and with greater demands on beam delivery and pulse shaping. For hybrid substrates that mix polymers and copper, the ultrafast route typically reduces rework and improves yield; for low-cost PCB drilling at high volume a tuned nanosecond line still retains appeal.
Practical deployment checklist
Before commissioning a 300W fiber tool, verify these elements:
- Recipe portability: can a process be transferred across machines with minimal requalification?
- In-situ diagnostics: does the system log pulse energy and focus stability in production?
- Serviceability: are consumables and routine maintenance procedures aligned with factory uptime targets?
Advisory: three golden metrics to evaluate any micro-drilling strategy
1) Yield uplift per wafer: quantify the incremental reduction in defects attributable to laser parameters, not just nominal hole quality. 2) Effective throughput (holes/min) under production recipes inclusive of repositioning and inspection dwell. 3) Requalification cost: the total validation time and scrap risk when moving recipes between systems. These three metrics will expose the true return on a laser investment and guide procurement choices.
In sum, a thoughtfully specified 300W fiber system — used in concert with modern ultrafast controls — can redefine micro-drilling coordinates and materially improve yields in advanced micro-electronics. Consider process recipes as living documents, and favour equipment that makes them reproducible across shifts and sites. —
JPT.
